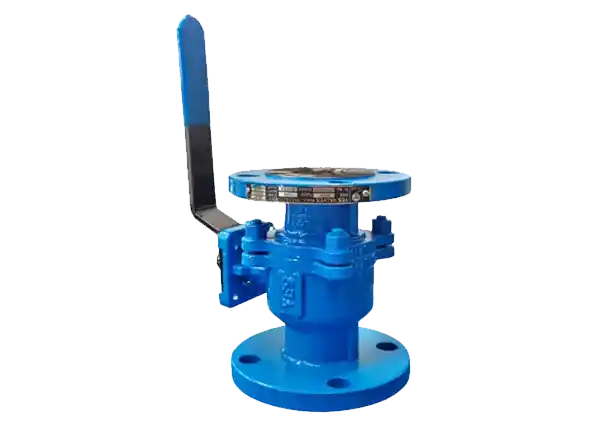

Floating Ball Valves
Floating Ball Valves
Floating Ball Valves for Reliable Shut-Off and Flow Control
YES Valves Floating Ball Valves are designed to provide reliable isolation and leak-tight shut-off in water, industrial, utility, and process applications. The floating ball design allows the ball to move slightly under pressure, ensuring a secure seal against the valve seat and delivering dependable performance across varying operating conditions.
Known for their quarter-turn operation, compact design, and low maintenance requirements, Floating Ball Valves are widely used where fast operation and reliable flow control are essential.
Manufactured with precision engineering and quality materials, YES Floating Ball Valves provide long service life, excellent sealing performance, and smooth operation in demanding environments.
Technical Specifications
| MOC: | WCB/CF8/CF8M |
|---|---|
| SIZE: | 50mm to 200mm (for Trunion 250mm to 600mm) |
| PRESSURE RATING: | #150, #300 |
| DESIGN STD.: | EN ISO 17292 / API 6D |
| TESTING STD.: | API598 / EN 12266-1 |
| OPERATION: | MANUAL/ACTUATION (Pneumatic & Electric) |
| END CONNECTION: | FLANGE ENDS |
| FORGE VALVE: | 15mm to 50mm (#800, #1500) |
| END CONNECTION: | SWE/SE |
| DESIGN & TESTING STD.: | EN ISO 17292 & API 598 |
- Floating ball design for tight shut-off
- Quarter-turn operation
- Low operating torque
- Bubble-tight sealing performance
- Corrosion-resistant construction
- Compact and lightweight design
- Low maintenance requirements
- Long service life
- Water Distribution Systems
- Water Treatment Plants (WTP)
- Wastewater Treatment Plants (STP / ETP)
- Industrial Processing Systems
- Oil & Gas Applications
- Petrochemical Plants
- Utility Services
- Infrastructure Projects
